name: Slotted MDF
date: 2021-10-21 10:09:16
view: 139
about:

  Linyi Huida Wood Co., Ltd. was founded in 2011. It is a leading company specializing in the manufacturing and exporting of wood products.Located in Linyi - the largest man-made board base in China, we have advanced production equipment and sophisticated t...




DETAIL



Product Name

 Slat wall Panel / Grooved board / Slotted MDF Board/Slatwall/Slot board.

Size

1220x2440mm (4'x8'), 1220x1220mm( 4'x4') or customized.

Thickness

15~25mm(+/-0.2mm)

Face/Back

Plain or Melamine paper/Acrylic/Fireproof sheet faced (one side or both side faced).

Surface Color

Wood grain color, solid color, customized colors and designs.

Surface Treatment

Matte / Embossed / Textured / Wood Embossing / Glossy/ Mosaic/ Piwen/ Magic, etc.

Groove Distance

75mm / 100mm / 150mm / 200mm / 300mm,or at your request.

Groove Type

Rectangle, Ellipse, Trapezoid or as requested.

Groove No.

7~21 grooves or with one or two half grooves on the side at your request.

Groove Direction

1220mm direction or 2440mm direction.

Inserts

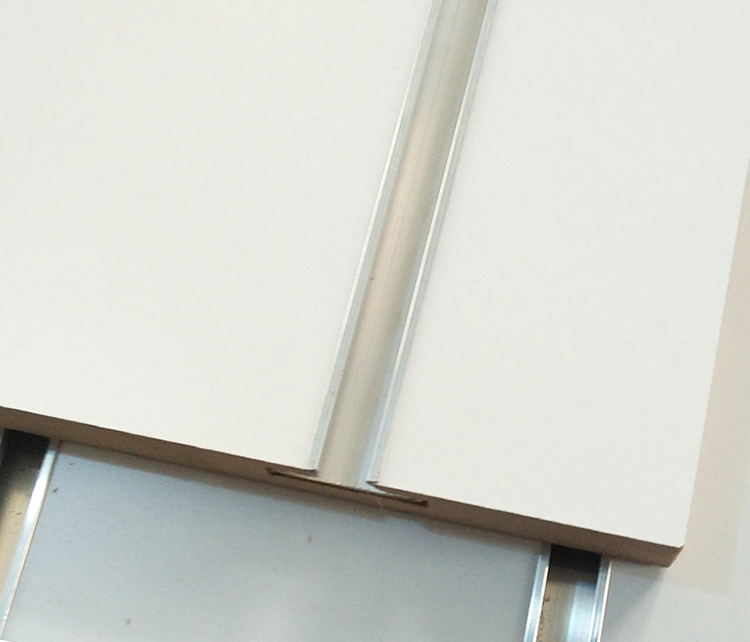

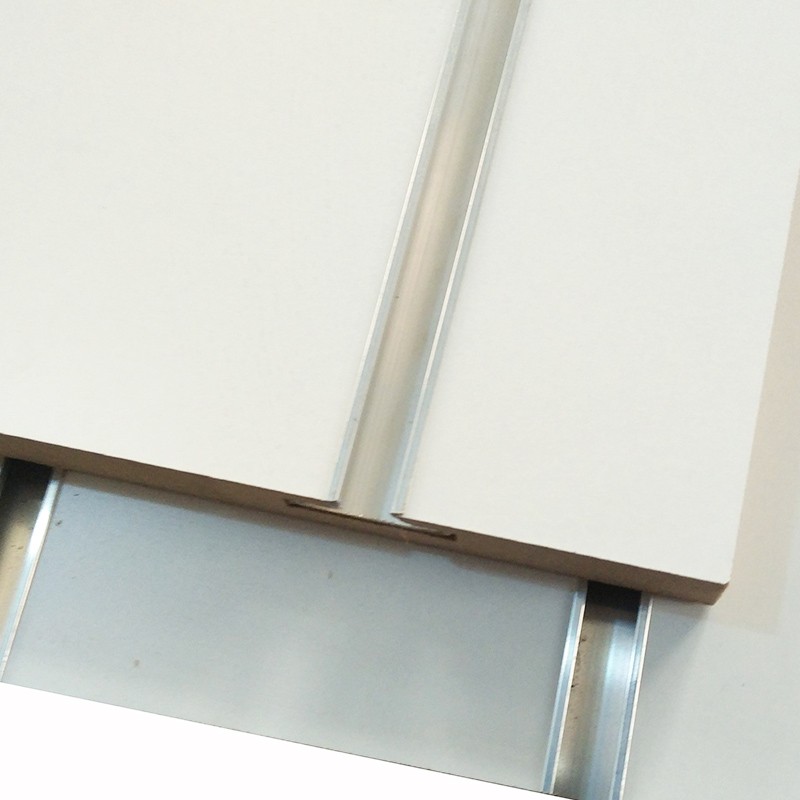

Aluminium Alloy T-bar (0.5~1mm thickness) or PVC T-bar.

Board Weight

32-40kg per sheet.

Payment Terms

T/T or L/C at sight.

Delivery Time

Within 15 days after receiving deposit or original L/C at sight .

Port Of Shipment

Qingdao port or Lianyungang port, China

Other Services

OEM, ODM ,as well as Building Materials Sourcing Service are available.

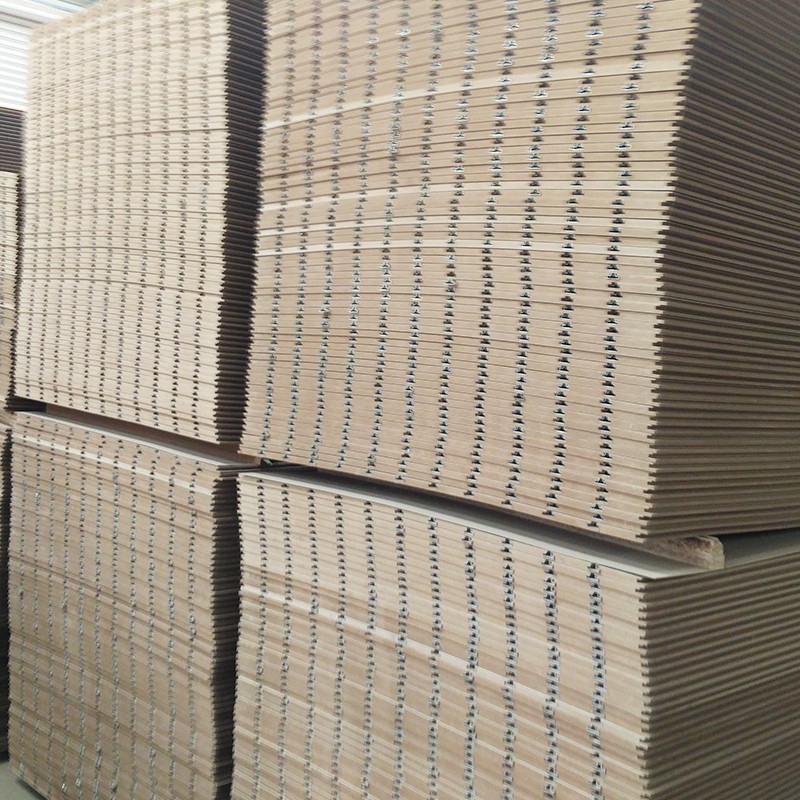

Slotted MDF(图1)

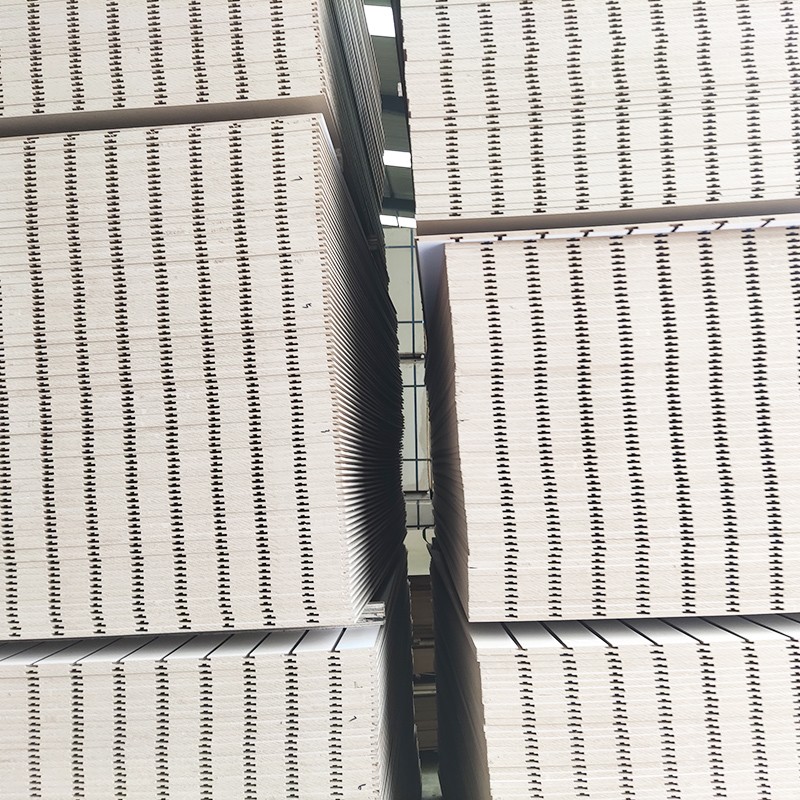

Slotted MDF(图2)

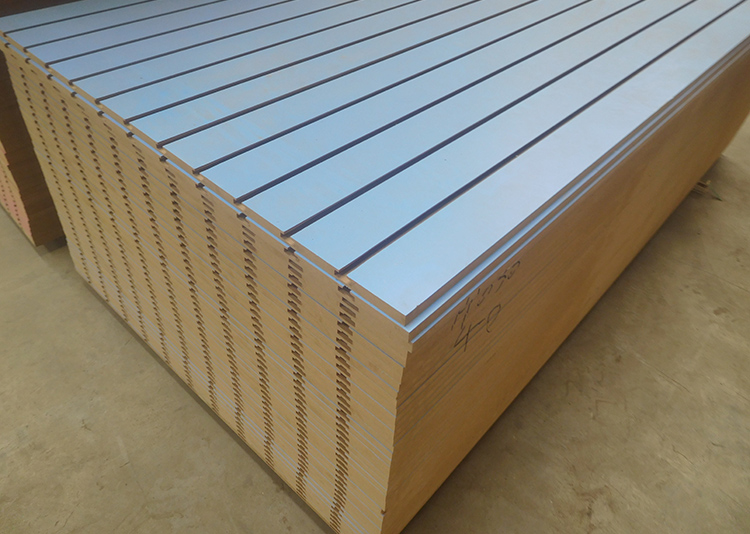

Slotted MDF(图3)

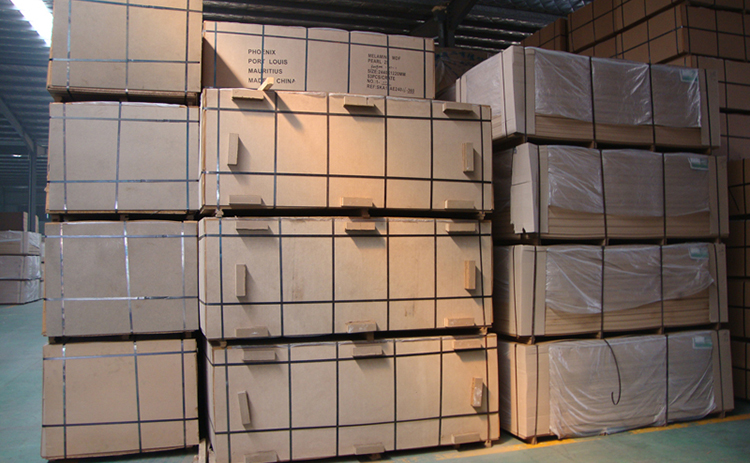

Slotted MDF(图4)
