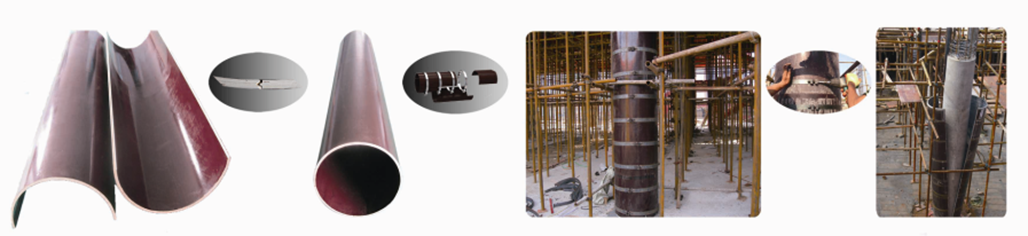

Circular Column Formwork for Construction Projects

Place of Origin: Shandong, China (Mainland)

Brand Name: Huida

Model Number: 250-550mm 600-1200mm 1300-1550mm 1600-4200mm

Material: poplar plywood with brown film

Application: Concrete Construction

Usage: round concrete formwork

Size: Buyer's Requirements

Certificate: ISO SGS

Color: Black/Brown

Surface: Glossy

Product name: Concrete Panel Formwork

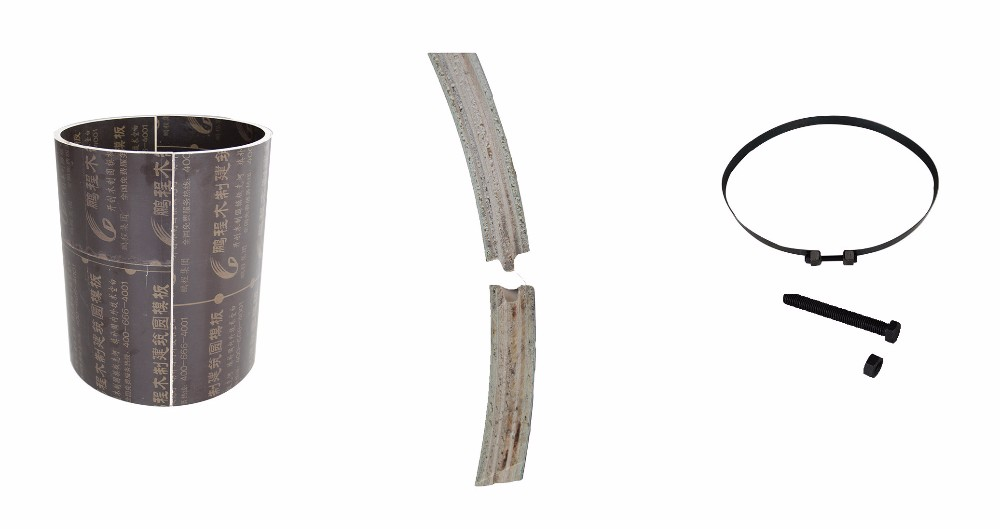

ACCESSORIES

Clamp, Bolts, Nuts, Base-collar(Optional)

Features.

--Tongue and groove to prevent leakage

-- Made of phenolic film face plywood, light in weight, easy handing

-- Nice smooth concrete finish without rework

-- Quick installation and dismantling

-- Can stack to be any height

Advantages.

-- Very efficient with 6-8 pours per column formwork

-- Highly-waterproof

-- No leakage

-- High flexibility

-- High class of concrete finish

-- Easy to cut for beams or customizing if required

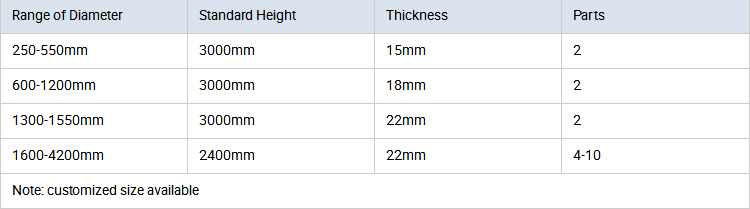

STANDARD SIZE

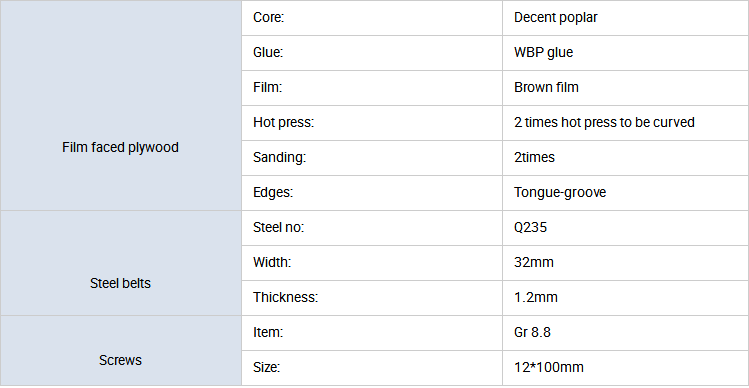

TCHNICAL DATA

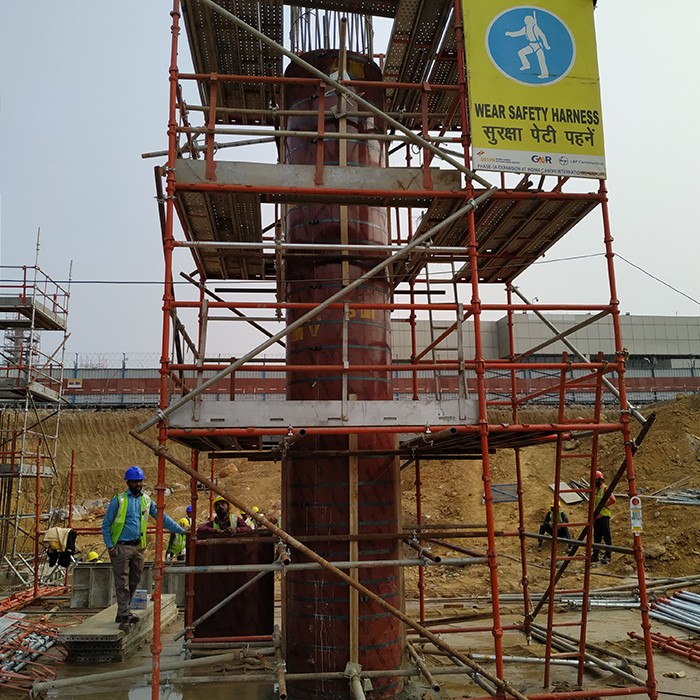

Application on site

Installation

1.Treat inner ply film with concrete release agent firstly.

2.Fix the steel belts horizontally according to the lines.

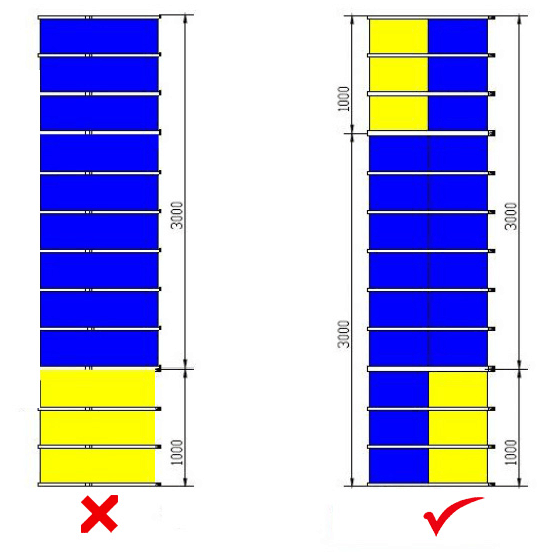

3.If the height is more than 3000mm , please install it as the indication below.

Dismantling

Simply untie the steel belts and the ply will separate easily.

Maintenance & Storage

Lightly treat the ply film with oil before next usage.

place the formwork vertical, away from direct sunlight and water.

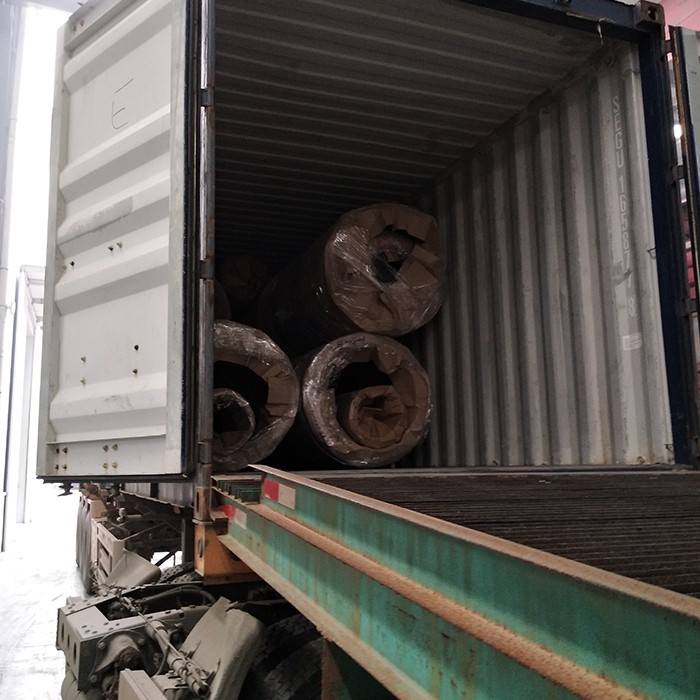

Packing & Delivery

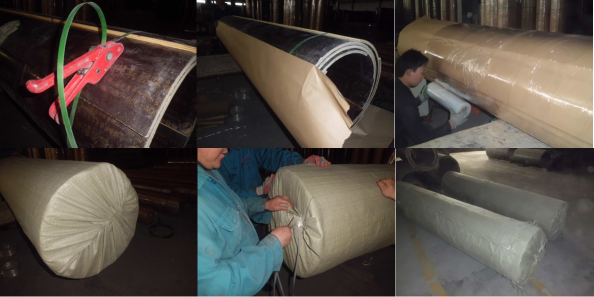

Packing details

bundle packing or based on your requirements

Shipping

1. FREE sample is sent out by International express, such as DHL, TNT, UPS....

2. Qingdao port is our loading port, the container is sent out by sea

Our Company

Production line : 3lines

Production capacity: 100 000 square meter per month

Employee: 500+

Formwork is a famous brand made by Linyi Huida Wood Industry Co., Ltd. We have been specializing in developing and manufacturing innovative products for concrete forming, such as PP plastic HDO plywood, circular column formwork, column formwork, special formwork, and related accessories. ISO9001 certification, machines from Germany, strict raw materials sourcing, experienced management team, skilled workers, ensure the high quality of finished products.
